Instanta Under Counter Hot Water Dispenser Ucd7 RESTAURANT & BAR

Original price was: $401.00.Current price is: $88.99.

SKU: Kitchen & Dining 6886258344114 Categories: Beverage Equipment, RESTAURANT & BAR, Water Boilers Tag: Counter Top

High quality products, low prices.
Elevate Your Shopping Experience
Shop with ease, buy with confidence.
Prompt service, every time.

Description
Reviews (0)

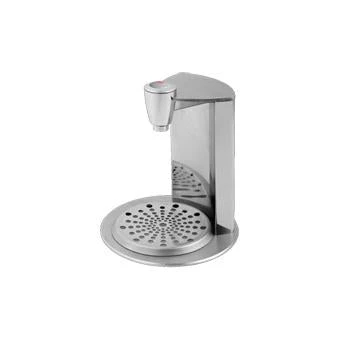

The Instanta UCD7 Under Counter Hot Water Dispenser has a stylish stainless steel and chrome font and a powerful boiler for underneath.

These boilers are electronically controlled for a constant temperature of up to 95^oC and have a unique, automatic re-circulating mode to prevent cold spots.

The UCD7 model has a 7L (42 cups) rapid draw off volume and is perfect for lighter or occasional use.

This sleek looking dispenser can blend into a variety of professional environments and has a modern LCD display for early warning diagnostics.

It is easy to install, as it has been cleverly designed with the font on top and the boiler sitting below the work surface.

Standard sized tap font measuring 221mm in total height (H2) and 132mm from base of tap to bottom of unit (H3).

Technical Details

Dimensions: 280mm x 380mm x 502mm (W x D x H)

Power Loading: 3kW

Rapid draw off: 7L (42 cups)

Hourly output: 28L (168 cups)

Tap Font: 185mm (Dia) 132mm (H3 – Tap Font To Base) 221mm (H2 – Total Height of Font)

Plumbing

Designed for direct connection to a potable cold water supply using the 1.5 metre (0.75″ BSP) food quality hose supplied. An isolating value should be installed between the supply and the machine. Right hand side water connection and overflow.

Electrical

To be connected to a 230 Volt supply with break capacities as appropriate.
